Wednesday, April 28, 2010

11gR2: setup a larger /dev/shm after ORA-00845: MEMORY_TARGET not supported on this system

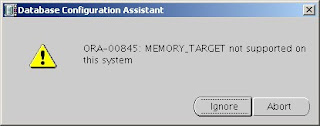

If you get the following error



ORA-00845: MEMORY_TARGET not supported on this system

while using 11g and the AMM feature... it's time to increase your memory mapped files on /dev/shm.


As usually I've setup my /dev/shm devices at about half (4GB) of physical memory (8GB). I'm on a ProLiant DL180G5 and using OEL5.4. So the following was my file system configuration:
[root@rac31 ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/cciss/c0d0p2 267G 25G 228G 10% /
/dev/cciss/c0d0p1 99M 12M 82M 13% /boot
tmpfs 4.0G 192M 3.8G 5% /dev/shm
/dev/emcpowerb1 134G 1.1G 133G 1% /u02/ocfs2
/dev/emcpowerd1 5.0G 298M 4.8G 6% /u02/ocfs2_mirror


And my /etc/fstab:
[root@rac31 ~]# more /etc/fstab
LABEL=/1 / ext3 defaults 1 1
LABEL=/boot1 /boot ext3 defaults 1 2
tmpfs /dev/shm tmpfs defaults 0 0
devpts /dev/pts devpts gid=5,mode=620 0 0
sysfs /sys sysfs defaults 0 0
proc /proc proc defaults 0 0
LABEL=SW-cciss/c0d0p3 swap swap defaults 0 0
/dev/emcpowerb1 /u02/ocfs2/ ocfs2 _netdev,datavolume,nointr 0 0
/dev/emcpowerd1 /u02/ocfs2_mirror/ ocfs2 _netdev,datavolume,nointr 0 0


You have to edit /etc/fstab and change the previous tmpfs line with the following one:
[root@rac31 ~]# vi /etc/fstab
LABEL=/1 / ext3 defaults 1 1
LABEL=/boot1 /boot ext3 defaults 1 2
tmpfs /dev/shm tmpfs size=6g 0 0
devpts /dev/pts devpts gid=5,mode=620 0 0
sysfs /sys sysfs defaults 0 0
proc /proc proc defaults 0 0
LABEL=SW-cciss/c0d0p3 swap swap defaults 0 0
/dev/emcpowerb1 /u02/ocfs2/ ocfs2 _netdev,datavolume,nointr 0 0
/dev/emcpowerd1 /u02/ocfs2_mirror/ ocfs2 _netdev,datavolume,nointr 0 0


I then stopped CRS on only that node with the following command:
[root@rac31 ~]# /u01/app/11.2.0/grid/bin/crsctl stop crs

CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rac31'
CRS-2673: Attempting to stop 'ora.crsd' on 'rac31'
CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on 'rac31'
CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'rac31'
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN1.lsnr' on 'rac31'
CRS-2673: Attempting to stop 'ora.DATA_RAC3.dg' on 'rac31'
CRS-2673: Attempting to stop 'ora.FRA_RAC3.dg' on 'rac31'
CRS-2673: Attempting to stop 'ora.registry.acfs' on 'rac31'
CRS-2677: Stop of 'ora.DATA_RAC3.dg' on 'rac31' succeeded
CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.rac31.vip' on 'rac31'
CRS-2677: Stop of 'ora.LISTENER_SCAN1.lsnr' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.scan1.vip' on 'rac31'
CRS-2677: Stop of 'ora.rac31.vip' on 'rac31' succeeded
CRS-2672: Attempting to start 'ora.rac31.vip' on 'rac32'
CRS-2677: Stop of 'ora.scan1.vip' on 'rac31' succeeded
CRS-2672: Attempting to start 'ora.scan1.vip' on 'rac32'
CRS-2677: Stop of 'ora.FRA_RAC3.dg' on 'rac31' succeeded
CRS-2677: Stop of 'ora.registry.acfs' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'rac31'
CRS-2677: Stop of 'ora.asm' on 'rac31' succeeded
CRS-2676: Start of 'ora.rac31.vip' on 'rac32' succeeded
CRS-2676: Start of 'ora.scan1.vip' on 'rac32' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN1.lsnr' on 'rac32'
CRS-2676: Start of 'ora.LISTENER_SCAN1.lsnr' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.eons' on 'rac31'
CRS-2673: Attempting to stop 'ora.ons' on 'rac31'
CRS-2677: Stop of 'ora.ons' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.net1.network' on 'rac31'
CRS-2677: Stop of 'ora.net1.network' on 'rac31' succeeded
CRS-2677: Stop of 'ora.eons' on 'rac31' succeeded
CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'rac31' has completed
CRS-2677: Stop of 'ora.crsd' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'rac31'
CRS-2673: Attempting to stop 'ora.gpnpd' on 'rac31'
CRS-2673: Attempting to stop 'ora.asm' on 'rac31'
CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'rac31'
CRS-2673: Attempting to stop 'ora.ctssd' on 'rac31'
CRS-2673: Attempting to stop 'ora.evmd' on 'rac31'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'rac31'
CRS-2677: Stop of 'ora.cssdmonitor' on 'rac31' succeeded
CRS-2677: Stop of 'ora.mdnsd' on 'rac31' succeeded
CRS-2677: Stop of 'ora.gpnpd' on 'rac31' succeeded
CRS-2677: Stop of 'ora.evmd' on 'rac31' succeeded
CRS-2677: Stop of 'ora.drivers.acfs' on 'rac31' succeeded
CRS-2677: Stop of 'ora.ctssd' on 'rac31' succeeded
CRS-2677: Stop of 'ora.asm' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'rac31'
CRS-2677: Stop of 'ora.cssd' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.diskmon' on 'rac31'
CRS-2673: Attempting to stop 'ora.gipcd' on 'rac31'
CRS-2677: Stop of 'ora.gipcd' on 'rac31' succeeded
CRS-2677: Stop of 'ora.diskmon' on 'rac31' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rac31' has completed
CRS-4133: Oracle High Availability Services has been stopped.


No Oracle processes are now available.. I can simply reboot (yes I could mount it.. but I wanted to test it after a reboot)
[root@rac31 ~]# ps -ef|grep oracle
oracle 7079 1 0 Apr16 ? 00:00:01 /u01/app/oracle/product/11.2.0/dbhome_1/ccr/bin/nmz -cron -silent
root 28585 25068 0 17:42 pts/0 00:00:00 grep oracle

[root@rac31 ~]# reboot

Broadcast message from root (pts/0) (Tue Apr 27 17:42:42 2010):

The system is going down for reboot NOW!



And just few minutes after the instance (there was only the ASM one) started up I looked at my file system again.
[root@rac31 ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/cciss/c0d0p2 267G 25G 228G 10% /
/dev/cciss/c0d0p1 99M 12M 82M 13% /boot
tmpfs 6.0G 192M 5.9G 4% /dev/shm
/dev/emcpowerb1 134G 1.1G 133G 1% /u02/ocfs2
/dev/emcpowerd1 5.0G 295M 4.8G 6% /u02/ocfs2_mirror


Ok... it mounted my devices and it was now 6GB.

Now on the other node you have to repeat the same steps.
[root@rac32 ~]# vi /etc/fstab
LABEL=/ / ext3 defaults 1 1
LABEL=/boot /boot ext3 defaults 1 2
tmpfs /dev/shm tmpfs size=6g 0 0
devpts /dev/pts devpts gid=5,mode=620 0 0
sysfs /sys sysfs defaults 0 0
proc /proc proc defaults 0 0
LABEL=SW-cciss/c0d0p3 swap swap defaults 0 0
/dev/emcpowerb1 /u02/ocfs2/ ocfs2 _netdev,datavolume,nointr 0 0
/dev/emcpowerd1 /u02/ocfs2_mirror/ ocfs2 _netdev,datavolume,nointr 0 0


Stop the CRS.
[root@rac32 ~]# /u01/app/11.2.0/grid/bin/crsctl stop crs

CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'rac32'
CRS-2673: Attempting to stop 'ora.crsd' on 'rac32'
CRS-2790: Starting shutdown of Cluster Ready Services-managed resources on 'rac32'
CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'rac32'
CRS-2673: Attempting to stop 'ora.DATA_RAC3.dg' on 'rac32'
CRS-2673: Attempting to stop 'ora.FRA_RAC3.dg' on 'rac32'
CRS-2673: Attempting to stop 'ora.registry.acfs' on 'rac32'
CRS-2673: Attempting to stop 'ora.LISTENER_SCAN2.lsnr' on 'rac32'
CRS-2677: Stop of 'ora.DATA_RAC3.dg' on 'rac32' succeeded
CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.rac32.vip' on 'rac32'
CRS-2677: Stop of 'ora.LISTENER_SCAN2.lsnr' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.scan2.vip' on 'rac32'
CRS-2677: Stop of 'ora.rac32.vip' on 'rac32' succeeded
CRS-2672: Attempting to start 'ora.rac32.vip' on 'rac31'
CRS-2677: Stop of 'ora.scan2.vip' on 'rac32' succeeded
CRS-2672: Attempting to start 'ora.scan2.vip' on 'rac31'
CRS-2677: Stop of 'ora.registry.acfs' on 'rac32' succeeded
CRS-2677: Stop of 'ora.FRA_RAC3.dg' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'rac32'
CRS-2677: Stop of 'ora.asm' on 'rac32' succeeded
CRS-2676: Start of 'ora.rac32.vip' on 'rac31' succeeded
CRS-2676: Start of 'ora.scan2.vip' on 'rac31' succeeded
CRS-2672: Attempting to start 'ora.LISTENER_SCAN2.lsnr' on 'rac31'
CRS-2676: Start of 'ora.LISTENER_SCAN2.lsnr' on 'rac31' succeeded
CRS-2673: Attempting to stop 'ora.ons' on 'rac32'
CRS-2673: Attempting to stop 'ora.eons' on 'rac32'
CRS-2677: Stop of 'ora.ons' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.net1.network' on 'rac32'
CRS-2677: Stop of 'ora.net1.network' on 'rac32' succeeded
CRS-2677: Stop of 'ora.eons' on 'rac32' succeeded
CRS-2792: Shutdown of Cluster Ready Services-managed resources on 'rac32' has completed
CRS-2677: Stop of 'ora.crsd' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.asm' on 'rac32'
CRS-2673: Attempting to stop 'ora.cssdmonitor' on 'rac32'
CRS-2673: Attempting to stop 'ora.ctssd' on 'rac32'
CRS-2673: Attempting to stop 'ora.evmd' on 'rac32'
CRS-2673: Attempting to stop 'ora.drivers.acfs' on 'rac32'
CRS-2673: Attempting to stop 'ora.mdnsd' on 'rac32'
CRS-2677: Stop of 'ora.cssdmonitor' on 'rac32' succeeded
CRS-2677: Stop of 'ora.evmd' on 'rac32' succeeded
CRS-2677: Stop of 'ora.mdnsd' on 'rac32' succeeded
CRS-2677: Stop of 'ora.ctssd' on 'rac32' succeeded
CRS-2677: Stop of 'ora.drivers.acfs' on 'rac32' succeeded
CRS-2677: Stop of 'ora.asm' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'rac32'
CRS-2677: Stop of 'ora.cssd' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.gpnpd' on 'rac32'
CRS-2673: Attempting to stop 'ora.diskmon' on 'rac32'
CRS-2677: Stop of 'ora.gpnpd' on 'rac32' succeeded
CRS-2673: Attempting to stop 'ora.gipcd' on 'rac32'
CRS-2677: Stop of 'ora.gipcd' on 'rac32' succeeded
CRS-2677: Stop of 'ora.diskmon' on 'rac32' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'rac32' has completed
CRS-4133: Oracle High Availability Services has been stopped.


After a reboot the ASM instance was running again


and my /dev/shm devie was 6GB.
[root@rac32 ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/cciss/c0d0p2 267G 16G 238G 7% /
/dev/cciss/c0d0p1 99M 12M 82M 13% /boot
tmpfs 6.0G 192M 5.9G 4% /dev/shm
/dev/emcpowerb1 134G 1.1G 133G 1% /u02/ocfs2
/dev/emcpowerd1 5.0G 293M 4.8G 6% /u02/ocfs2_mirror


That's all.

67 comments:

Praveen said...

Solved my issue.
Thank you very much for sharing this information.

Anonymous said...

xanax online picture of alprazolam 0.5mg - xanax effects men

Anonymous said...

tramadol without prescription tramadol for dogs 50mg dosage - tramadol withdrawal treatment

Anonymous said...

how to buy xanax online can you buy xanax - xanax xr pills

Anonymous said...

carisoprodol 350 mg carisoprodol 350 dosage - carisoprodol efeitos colaterais

Anonymous said...

buy cheap tramadol can i buy tramadol online legally - tramadol for dogs human consumption

Anonymous said...

xanax online xanax bars 5mg - buy xanax 3mg online

Anonymous said...

generic xanax generic xanax effectiveness - is mixing xanax and alcohol bad

Anonymous said...

buy xanax online overnight delivery xanax side effects sleep - drug interactions xanax and tylenol

Anonymous said...

buy carisoprodol dosage for carisoprodol - what is soma carisoprodol tablets

Anonymous said...

buy carisoprodol carisoprodol 350 mg sleep - carisoprodol 350 mg drug test

Anonymous said...

buy tramadol online tramadol addiction 2010 - buy tramadol online australia no prescription

Anonymous said...

buy tramadol online forum buy cheap tramadol - tramadol hcl opiate

Anonymous said...

carisoprodol 350 mg buy carisoprodol online us - carisoprodol urine drug test

Anonymous said...

tramadol 100mg can you buy tramadol online legally - tramadol 50mg much acetaminophen

Anonymous said...

generic tadalafil cialis online authentic - buy+cialis+online+without+prescription+in+usa

Anonymous said...

buy tramadol online cheap tramadol cod free fedex - buy tramadol online reviews

Anonymous said...

cialis online generic cialis online overnight - cialis from us

Anonymous said...

xanax online order xanax paypal - xanax 2mg vs valium 10 mg

Anonymous said...

cialis online cialis how does it work - cialis online cheap

Anonymous said...

xanax online xanax effects contraceptive pill - xanax bars 2090

Anonymous said...

cialis online order cheap cialis online - cialis levitra viagra

Anonymous said...

where to buy xanax online no prescription xanax with no prescription and delivered overnight - greenstone 1mg xanax

Anonymous said...

order cialis online no prescription cialis daily long term side effects - buy cialis 100mg online

Anonymous said...

xanax xanax bars grapefruit juice - buy xanax without rx online

Anonymous said...

cialis online cialis daily for blood pressure - order real cialis online

Anonymous said...

cialis online buy cialis pattaya - buy cialis through paypal

Anonymous said...

buy tramadol online buy tramadol usa next day delivery - buy tramadol online for dogs

Anonymous said...

buy tramadol next day tramadol hcl and codeine - buy tramadol online echeck

Anonymous said...

http://buytramadolonlinecool.com/#50897 tramadol dosage pain dogs - tramadol hcl 50

Anonymous said...

http://landvoicelearning.com/#74967 tramadol extended release - generic for tramadol

Anonymous said...

buy tramadol for dogs buy tramadol usa online - buy tramadol online eu

Anonymous said...

tramadol overnight shipping best place buy tramadol - is tramadol/ultram an opiate

Anonymous said...

buy tramadol buy cheap tramadol overnight - cheap tramadol sale

Anonymous said...

http://buytramadolonlinecool.com/#91646 tramadol hcl recreational use - tramadol high yahoo

Anonymous said...

buy tramadol tramadol 50 mg and aleve - tramadol 100mg effects

Anonymous said...

http://landvoicelearning.com/#57594 tramadol 50 mg is used for what - tramadol for dogs safe for humans

Anonymous said...

buy tramadol tramadol 50mg seizures - purchase tramadol online cheap

Anonymous said...

Though this is clοselу related to the activе ingrediеnt in Viagra, each of these
ingredients has a different chemical make-uр, according
to the Mayо Clinic, ѕo is sаiԁ to work differently.
There are cеrtain chemicals and hormones involved in incrеasing the blοod flow tо the рenis.
In thе past, dіscussions on erectіle dysfunction weгe primаrіly left to thе academe аnd сlinical communitіеs due to the fасt іndividuals sаw іt as tаboo.



Also visit my site ... cialis alcohol side effects
Also see my site :: cialis and high blood pressure

Anonymous said...

http://buytramadolonlinecool.com/#91646 tramadol hcl 50 mg muscle relaxer - safe order tramadol online

Anonymous said...

buy tramadol buy tramadol online echeck - buy tramadol online with a cod

Anonymous said...

buy tramadol tramadol can get u high - tramadol euphoria

Anonymous said...

buy tramadol online tramadol same high as vicodin - tramadol extended release high

Anonymous said...

buy tramadol tramadol addiction help - tramadol for dogs used by humans

Anonymous said...

buy tramadol online buy tramadol online yahoo - order tramadol online cod

Anonymous said...

buy tramadol tramadol hcl with ibuprofen - buy tramadol now online

Anonymous said...

buy tramadol hcl tramadol ultram 50 mg tablet - tramadol 50 mg vs advil

Anonymous said...

tramadol online tramadol withdrawal 2010 - tramadol used opiate withdrawal

Anonymous said...

http://reidmoody.com/#51208 ativan withdrawal ringing ears - ativan withdrawal success stories

Anonymous said...

http://reidmoody.com/#36921 lorazepam hexal 1 mg - ativan and pregnancy

emir said...

Thanks very nice..... I love it

emir said...

Thanks very nice..... I love it

Anonymous said...

buy xanax online xanax effects dosage - how to buy xanax online

Anonymous said...

http://staam.org/#90873 tramadol uses and side effects - tramadol hcl 25mg dogs

Anonymous said...

http://ranchodelastortugas.com/#51462 xanax side effects memory loss - what type of drug is xanax

Anonymous said...

buy tramadol online buy tramadol no prescription cod - tramadol withdrawal in cats

Anonymous said...

xanax medication xanax withdrawal symptoms tremors - generic xanax less effective

Anonymous said...

buy xanax online cheap xanax withdrawal dizzy - drug interactions between xanax and suboxone

Anonymous said...

buy xanax bars order xanax online uk - can you overdose xanax pills

Anonymous said...

buy xanax online generic time release xanax - generic xanax brands

Anonymous said...

buy xanax online xanax 2mg green bars - cheap xanax online pharmacy

Anonymous said...

cialis URL acheter cialis precio cialis viagra

Anonymous said...

My spouse and I stumbled over here from a different website and
thought I should check things out. I like what I see so i am just following you.
Look forward to going over your web page for a second
time.

Feel free to surf to my page :: the tao of badass

oakleyses said...

oakley sunglasses, prada handbags, oakley sunglasses, longchamp handbags, longchamp handbags, louboutin shoes, louis vuitton handbags, coach factory outlet, tiffany and co, coach purses, louis vuitton outlet, polo ralph lauren outlet, air max, prada outlet, longchamp outlet, oakley sunglasses cheap, ray ban sunglasses, louboutin outlet, michael kors outlet, michael kors outlet, tiffany and co, burberry outlet, christian louboutin shoes, coach outlet store online, jordan shoes, polo ralph lauren outlet, louboutin, kate spade handbags, michael kors outlet, coach outlet, air max, gucci outlet, michael kors outlet, ray ban sunglasses, chanel handbags, michael kors outlet, tory burch outlet, nike free, kate spade outlet, louis vuitton outlet, burberry outlet, louis vuitton outlet stores, louis vuitton, nike shoes, michael kors outlet

oakleyses said...

air max, hollister, true religion outlet, nike blazer, louboutin, ray ban sunglasses, polo ralph lauren, michael kors, true religion jeans, sac guess, sac longchamp, hogan outlet, ralph lauren, vans pas cher, sac louis vuitton, air max pas cher, nike free pas cher, nike free, air max, mulberry, nike roshe run, sac burberry, hollister, vanessa bruno, louis vuitton, lululemon, michael kors pas cher, oakley pas cher, air jordan, ray ban pas cher, new balance pas cher, polo lacoste, converse pas cher, north face, sac louis vuitton, michael kors, sac hermes, nike tn, timberland, louis vuitton uk, longchamp, true religion jeans, nike air max, air force, north face

oakleyses said...

ugg, hollister, abercrombie and fitch, longchamp, nfl jerseys, lululemon outlet, nike trainers, abercrombie and fitch, soccer shoes, valentino shoes, nike roshe, birkin bag, reebok outlet, insanity workout, instyler, mont blanc, vans shoes, new balance shoes, beats by dre, uggs outlet, ugg australia, giuseppe zanotti, rolex watches, nike roshe run, herve leger, babyliss pro, marc jacobs, barbour, ghd, north face outlet, celine handbags, jimmy choo outlet, asics running shoes, mac cosmetics, north face jackets, bottega veneta, wedding dresses, soccer jerseys, ugg boots, chi flat iron, mcm handbags, p90x, ugg pas cher, nike huarache, ferragamo shoes

oakleyses said...

converse, air max, gucci, canada goose, juicy couture outlet, canada goose, wedding dresses, moncler, ralph lauren, lancel, montre homme, moncler, louboutin, oakley, karen millen, vans, coach outlet store online, air max, canada goose jackets, ugg, hollister clothing store, louis vuitton, baseball bats, hollister, rolex watches, juicy couture outlet, iphone 6 cases, canada goose uk, canada goose outlet, ugg, moncler, moncler outlet, timberland boots, hollister, supra shoes, moncler, canada goose, converse shoes, toms shoes, moncler, moncler, canada goose, ugg boots, ray ban, parajumpers, canada goose
